Project information

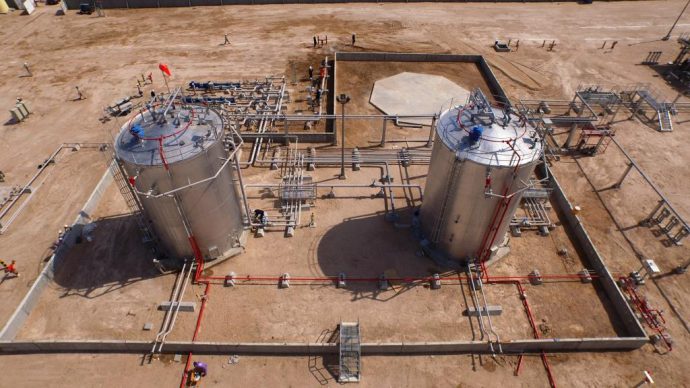

A major enhanced oil recovery project targeting the area’s shallow heavy oil reservoirs. The facility is supplied by 26 wells across two producing fields. Produced fluids and vapour are gathered at a central processing facility for separation and metering. Water from aquifer wells is treated to generate steam, which is injected into the reservoirs to help produce heavy oil. Awali provided piping, mechanical and structural design for the project, including offsite well sites, oil and steam flowlines, and manifolds. The onsite facilities included three-stage separation, steam generation, water treatment, crude oil storage and distribution pumps, and a flare system.
Software
Autocad, Cadworx, Navisworks, Caesar II and Staad Pro
Category
Oil and Gas
Location
Kuwait
Client
Alkhorayef - Kuwait
Delivered
Design deliverables including:-

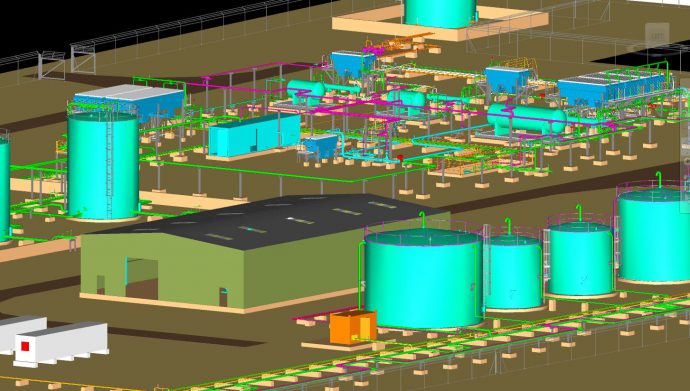

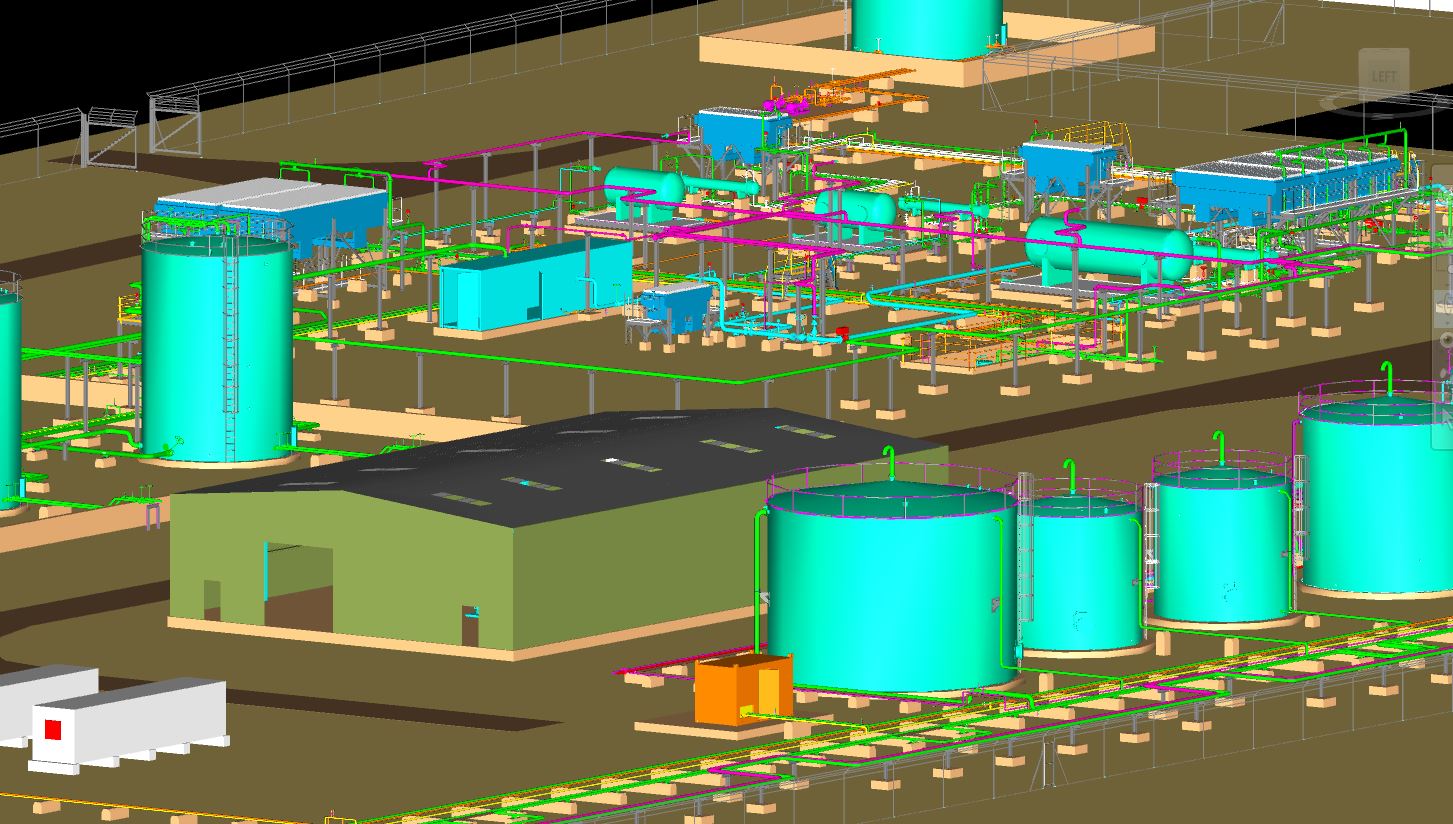

- Interactive 3D model.
- Complete set of 2D fabrication drawings.
- Plot plan drawings based on client preliminary study.
- General Arrangement drawings.
- Over 1000 isometrics generated from model.
- Pipe support drawings.
- Structural and civil details including bolting down details.
- Analysis of piping and structures.
- Material lists and other documentation.
- Site visits, Model and design reviews.
