Project information

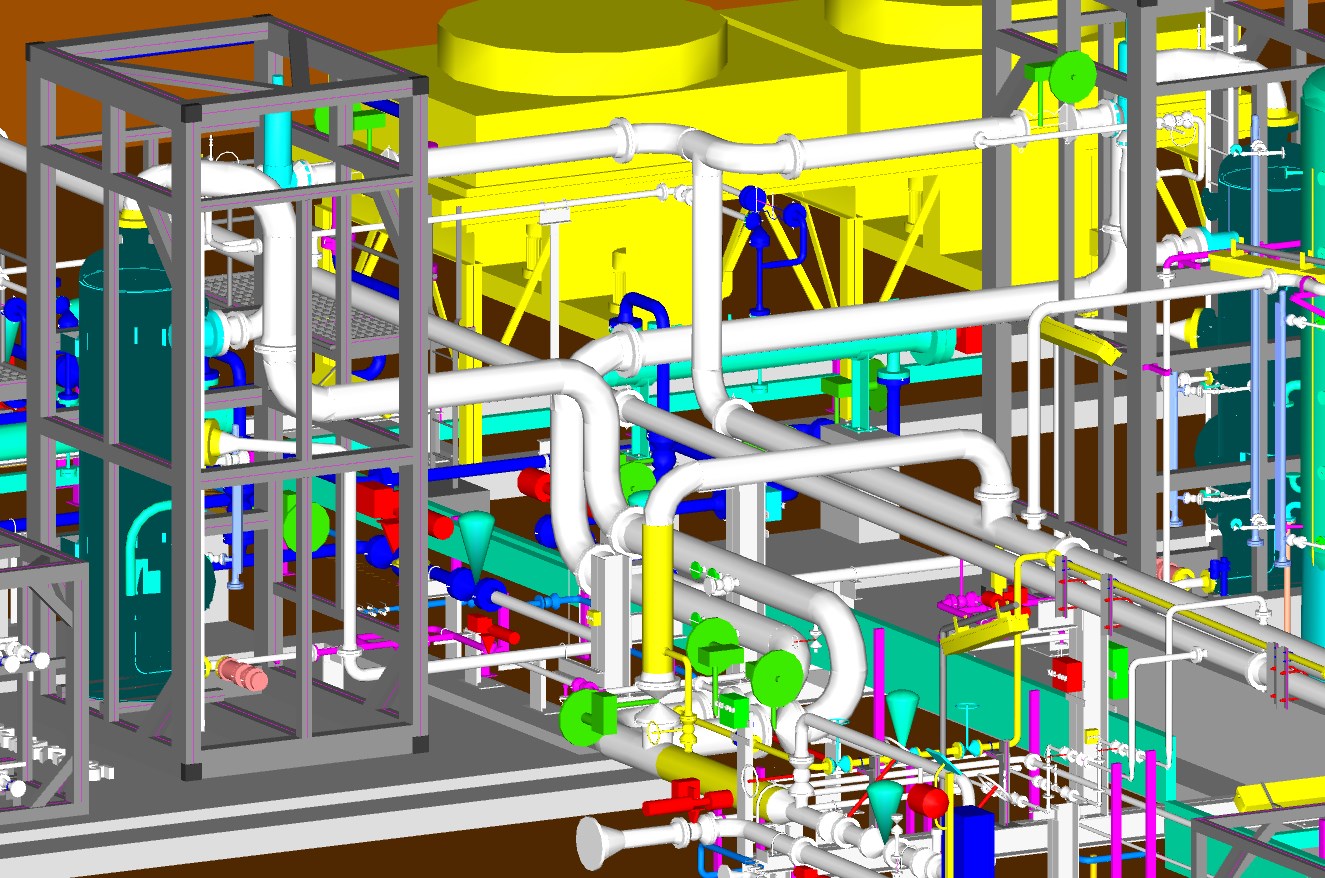

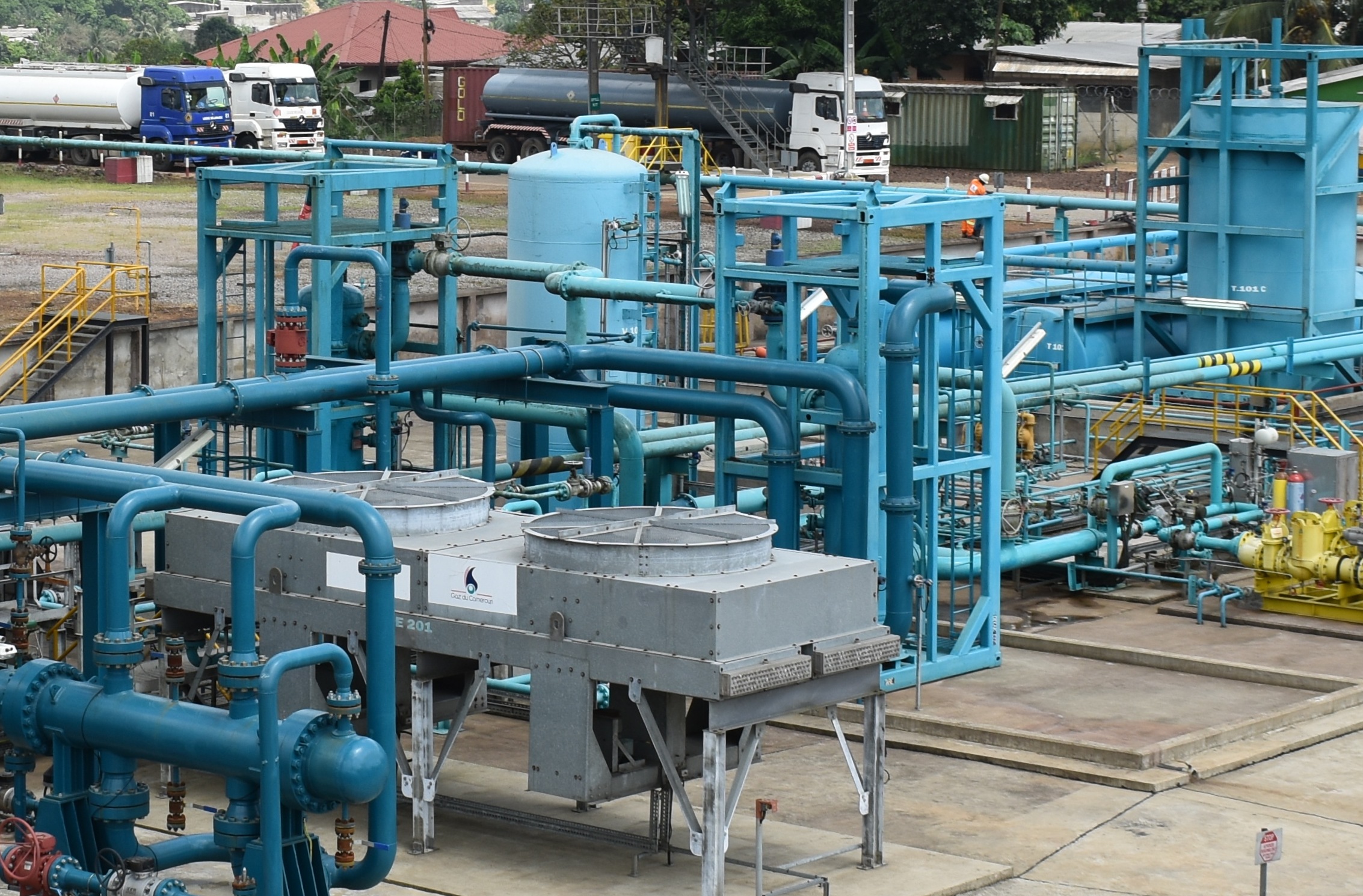

Logbaba Gas Processing Facility is an onshore natural gas extraction and processing facility in the eastern suburbs of Douala, Cameroon. It processes natural gas and condensate from local wells. Awali modified existing company assets and integrated them into the new facility. Our scope included piping, structural and civil design for the gas flowline, air cooling, first and second stage separation, condensate collection and tanker loading facilities, plus the flare system and gas to distribution point. Our designs were carried out using Cadworx and Autocad to develop detailed 3D models and 2D arrangement and fabrication drawings. We were also actively involved on site during construction through to commissioning.
Software
Autocad, Cadworx, Navisworks, Caesar II and Staad Pro.
Category
Oil and Gas
Location
Logbaba, Cameroon
Client
Expro.
Delivered
Design deliverables including:-
- Interactive 3D model.
- Complete set of 2D fabrication drawings.
- General Arrangement drawings.
- Pipe supports and structural drawings.
- Piping Isometrics generated from model
- Analysis of piping and structures.
- Material lists and other documentation.
- E&I detailing.

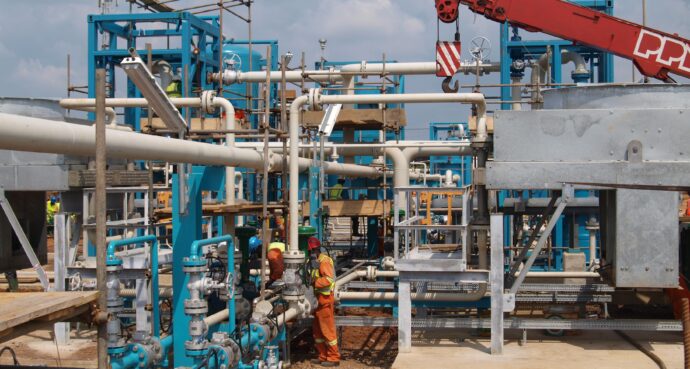

- Site visits to assist with construction and model and design reviews
