Early Production Facility – Iraq.

Project information

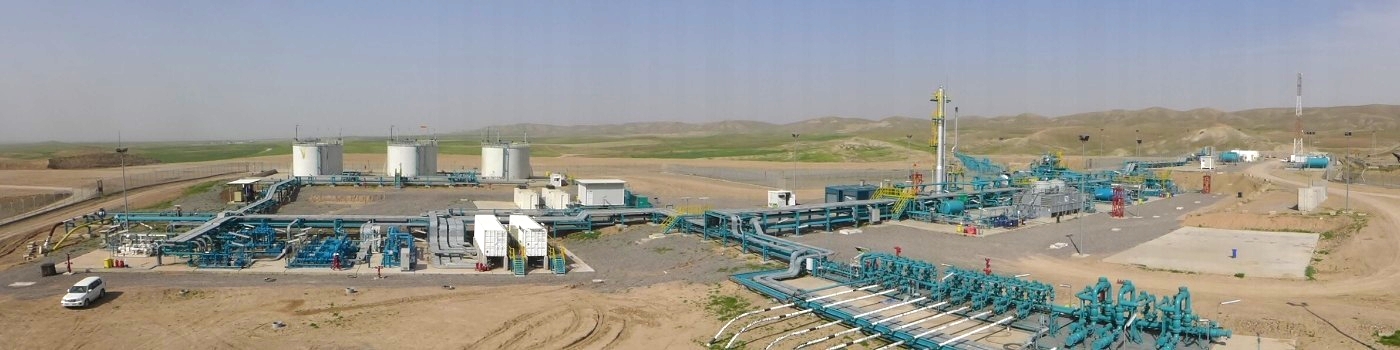

Early Production Facility (EPF) and Tanker Loading Station located in the Demir Dagh Oil Field of the Kurdistan Region of Iraq. Awali where involved in the development of this 25,000 BPD of oil, produced gas and water project from conception, through the Engineering and Design phases to Construction resulting in a successful completion of this "Fast Track" project. We where also involved on site during construction.

Software

Cadworx, Autocad, Navisworks, Caesar II and Staad Pro

Category

Oil and Gas

Location

Kurdistan Region, Iraq

Client

Expro.

Delivered

Project deliverables included:

  • 2D Conceptual Design
  • Studies and proposals

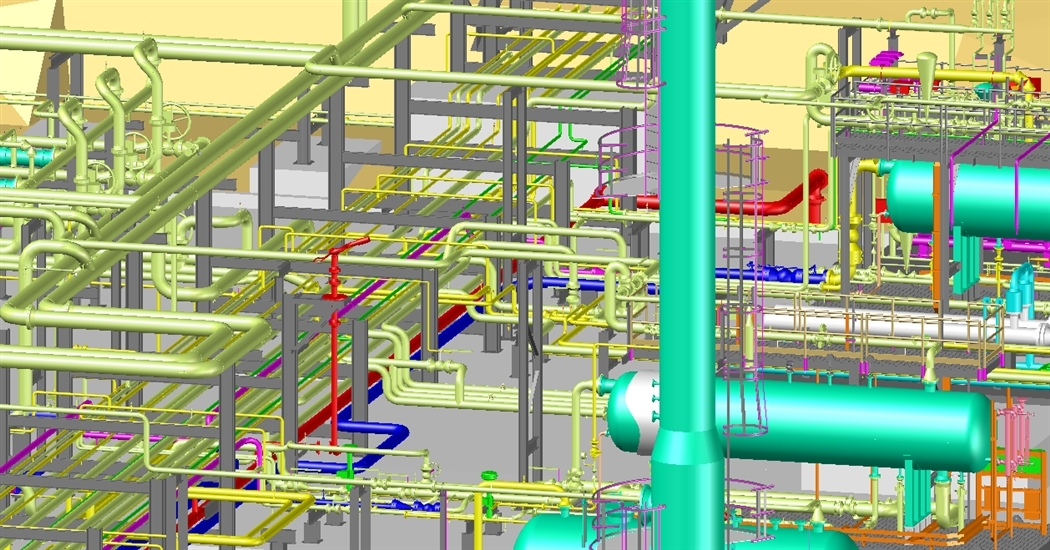

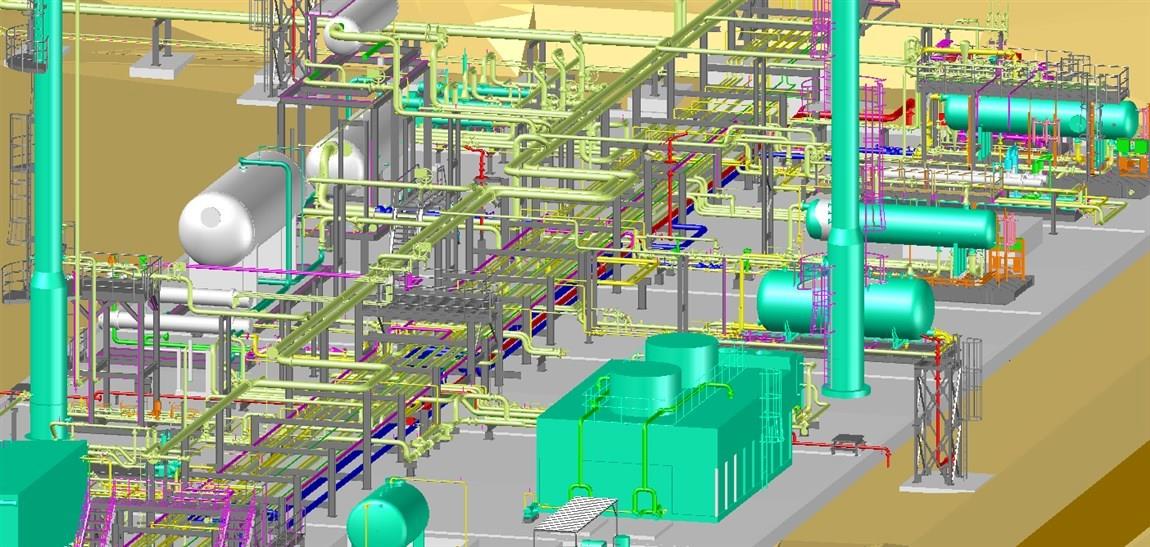

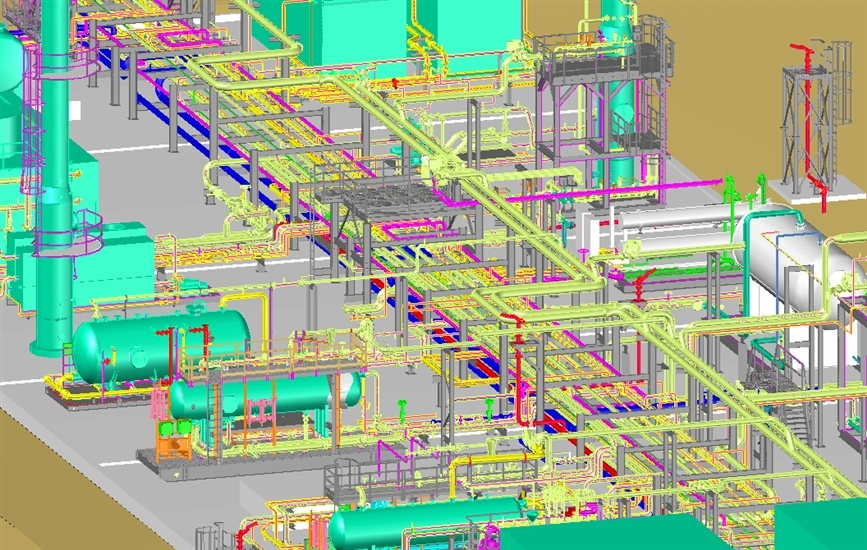

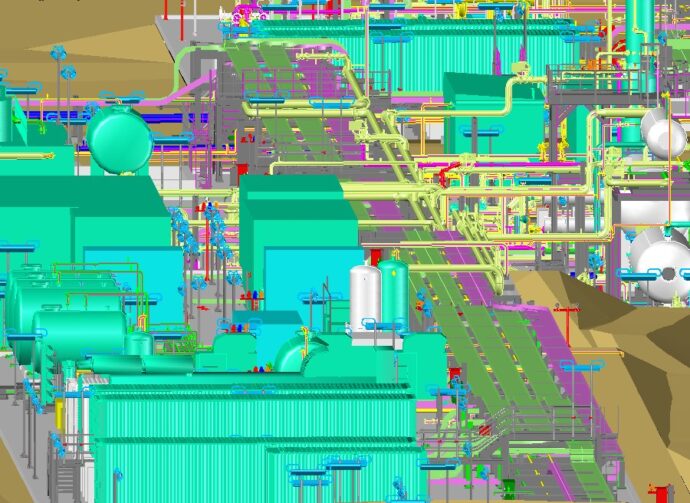

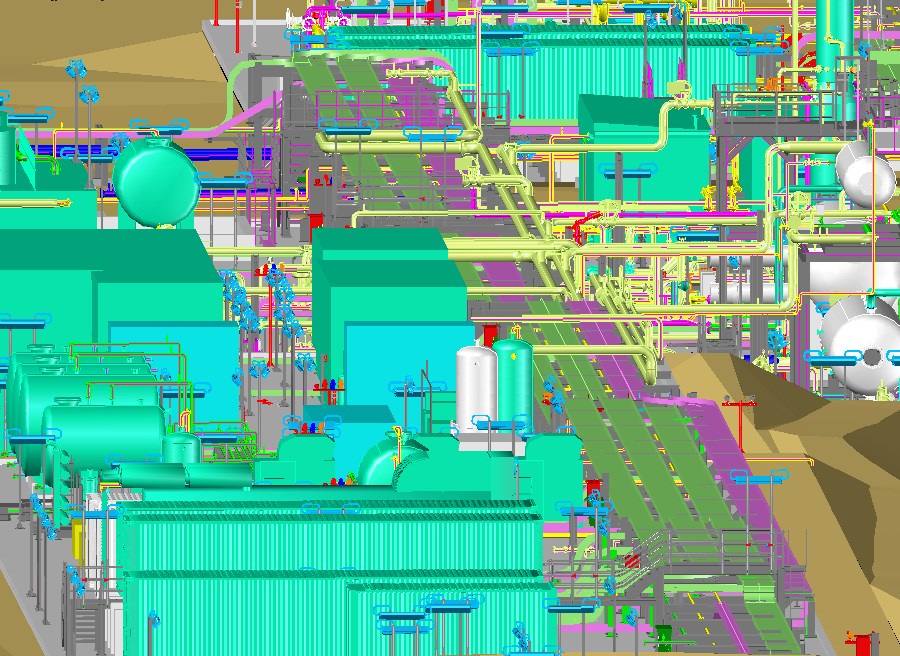

  • Interactive Piping, Equipment & Structural 3D model
  • Complete set of 2D fabrication drawings
  • General Arrangement and plot plan drawings
  • Pipe support drawings
  • Structural and civil drawings and details
  • Asset Modification
  • Analysis of piping and structures
  • Over 1200 isometrics generated from model
  • Full material lists and other documentation
  • Model and design reviews in UK and Iraq
  • Site visits to assist during construction
