Project information

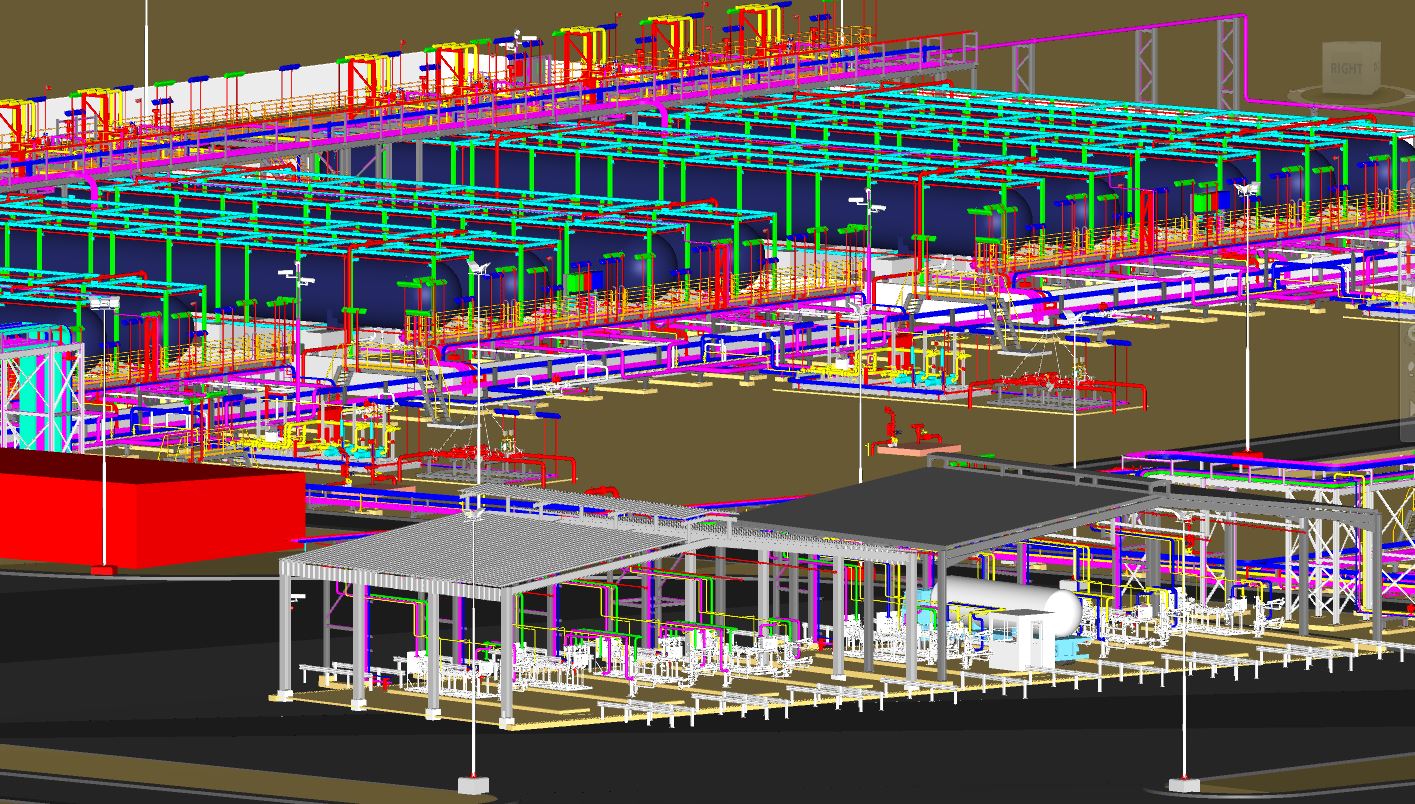

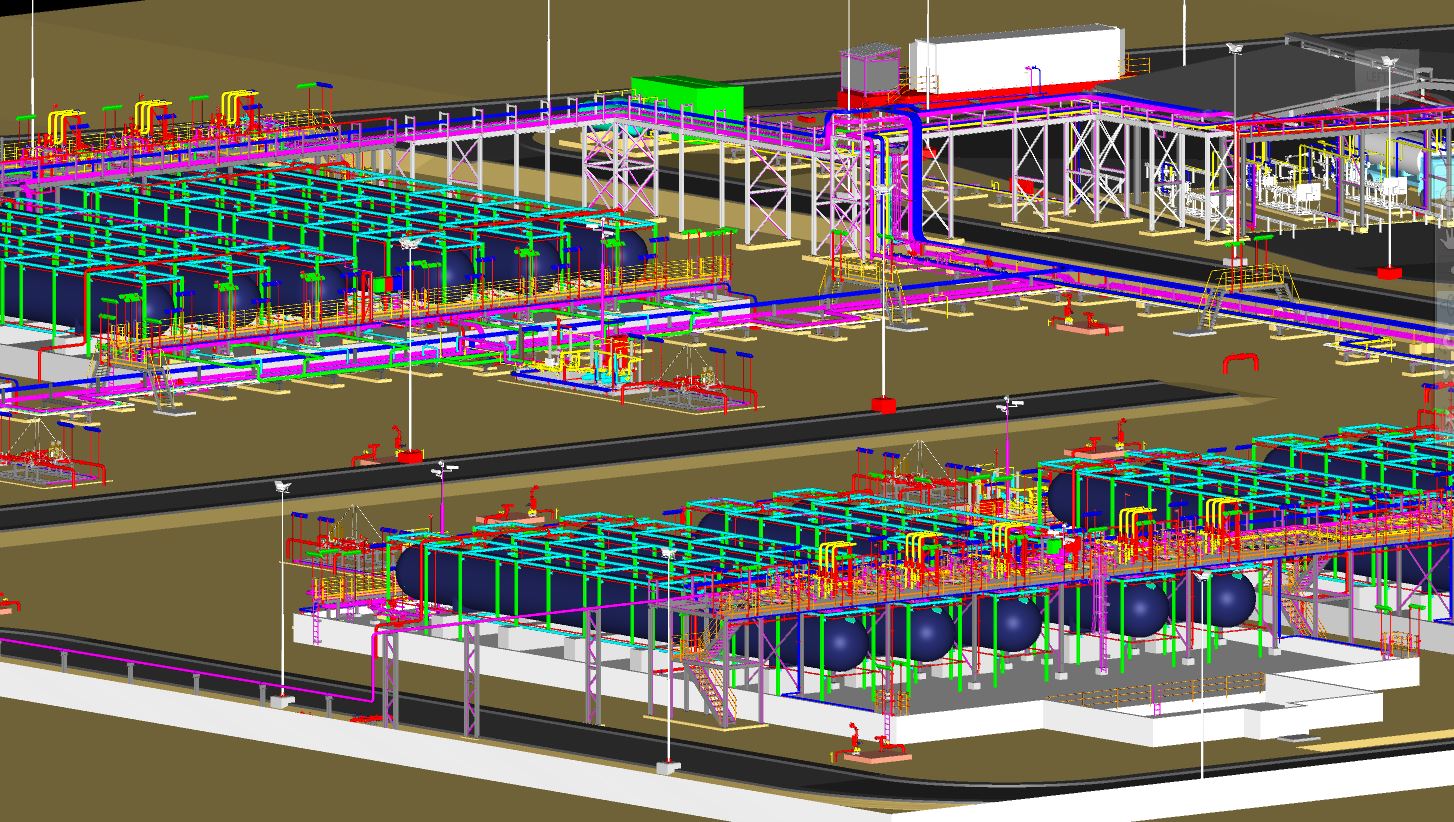

Commissioned by our client to undertake the Piping and Structural design plus stress analyse of the Owade-Ogharefe LPG and Propane Storage plus a Dispensing Terminal. Design included Piping, Structural and Civils for16 LPG and 13 Propane bullets, tanker loading, firewater and metering systems.
Software
Autocad, Cadworx, Navisworks, Caesar II and Staad Pro
Category
Oil and Gas
Location
Nigeria
Client
Weatherford
Delivered
Design deliverables including:
- Interactive 3D model
- Complete set of 2D fabrication drawings
- General Arrangement and plot plan drawings
- Pipe supports and structural drawings
- Isometrics generated from model
- Civil arrangements
- Analysis of piping and structures
- Material lists and other documentation
- Model and design reviews
