Project information

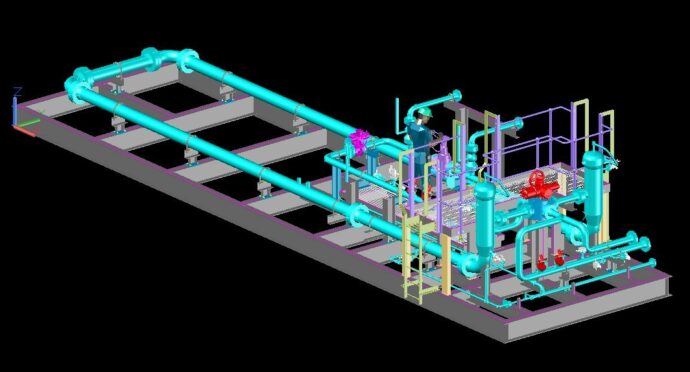

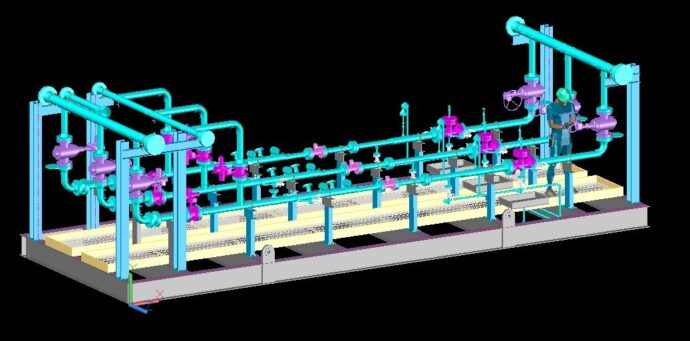

A construction-ready 3D model to support detailed drafting for a Nigerian oil and gas project. Awali developed the 3D design for a 3 × 50% metering skid and a bi-directional prover skid at Rumuekpe, Nigeria. Using the client’s P&IDs and design information, Awali created an integrated piping and structural model ready for construction drafting by others. The work included a preliminary 3D study, a bill of materials, and client review meetings to support design coordination.
Software
Cadworx, Autocad and Navisworks.
Category
Oil and Gas
Location
Rumuekpe, Nigeria
Client
Alderley
Delivered
Deliverables
- Preliminary 3D study
- Integrated piping and structural 3D model
- Bill of materials
- Client interaction and design review meetings
