Project information

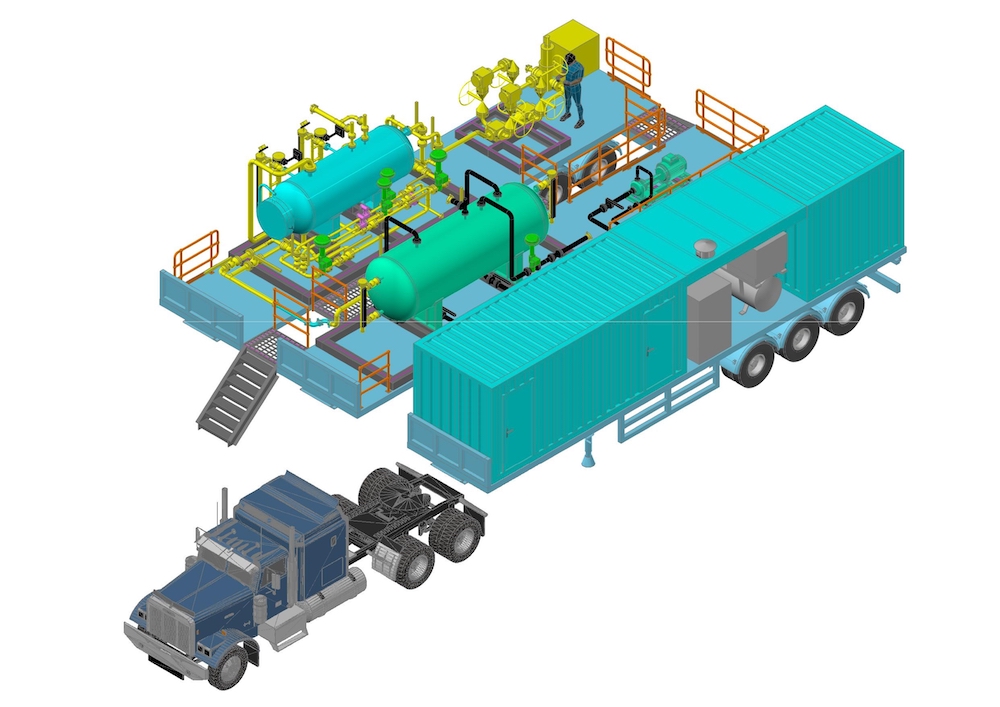

Design of mobile test separator complete with power generation and data acquisition. Designed to be driven to well sites at short notice.
Software
Autocad, Cadworx, Navisworks, Caesar II
Category
Oil and Gas
Location
Various
Client
Expro
Delivered
Design deliverables including:-
- Interactive 3D model.
- Steelwork design
- Piping design
- Complete set of 2D drawings.

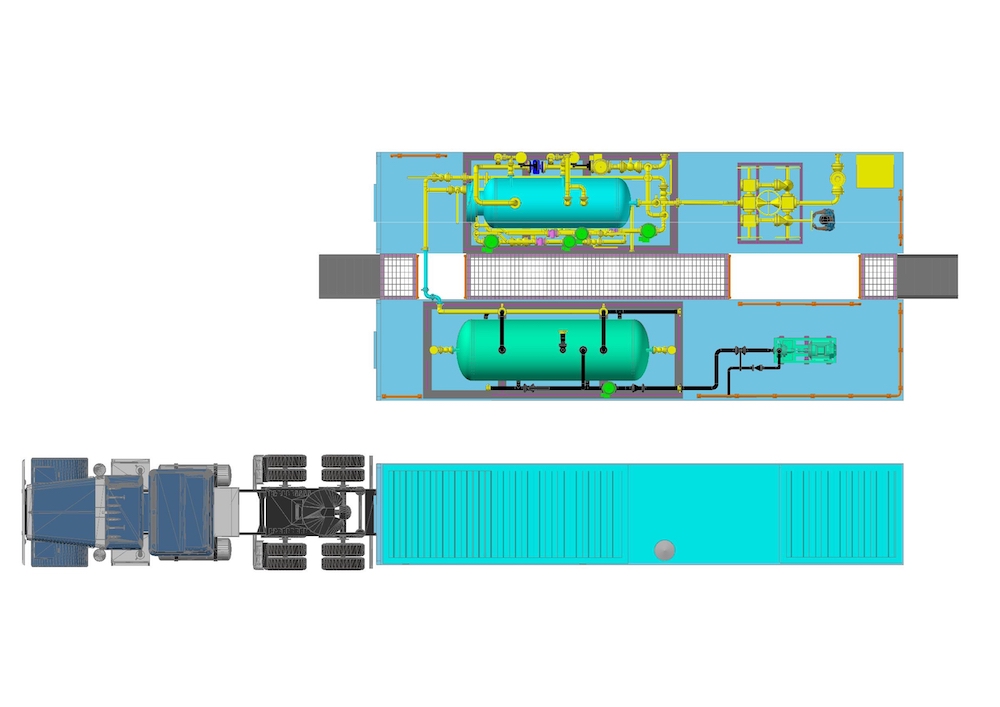

- General Arrangement drawings.
- Pipe support drawings.
- Analysis of piping.
- Automatic generation of piping isometrics.
- Material lists and other documentation.
