Road Blockers – UK

Project information

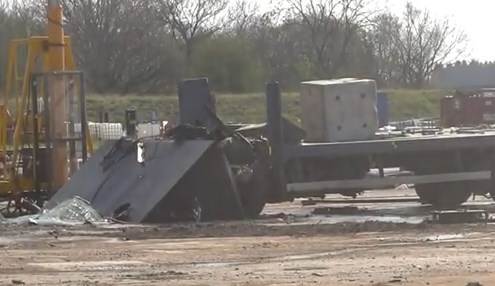

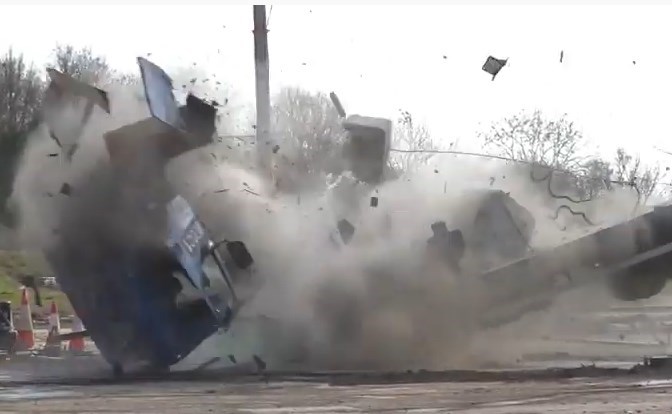

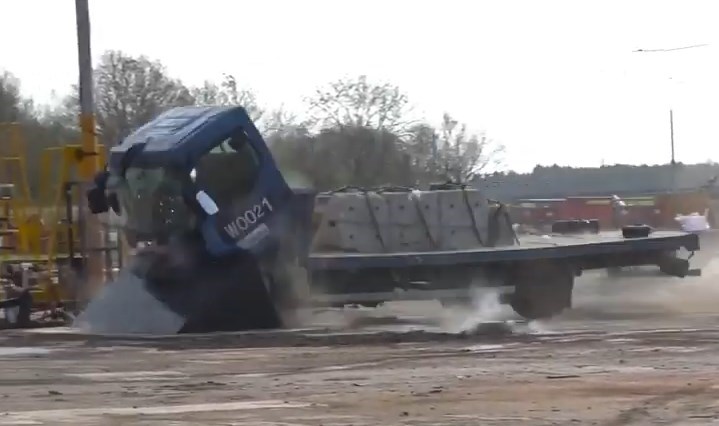

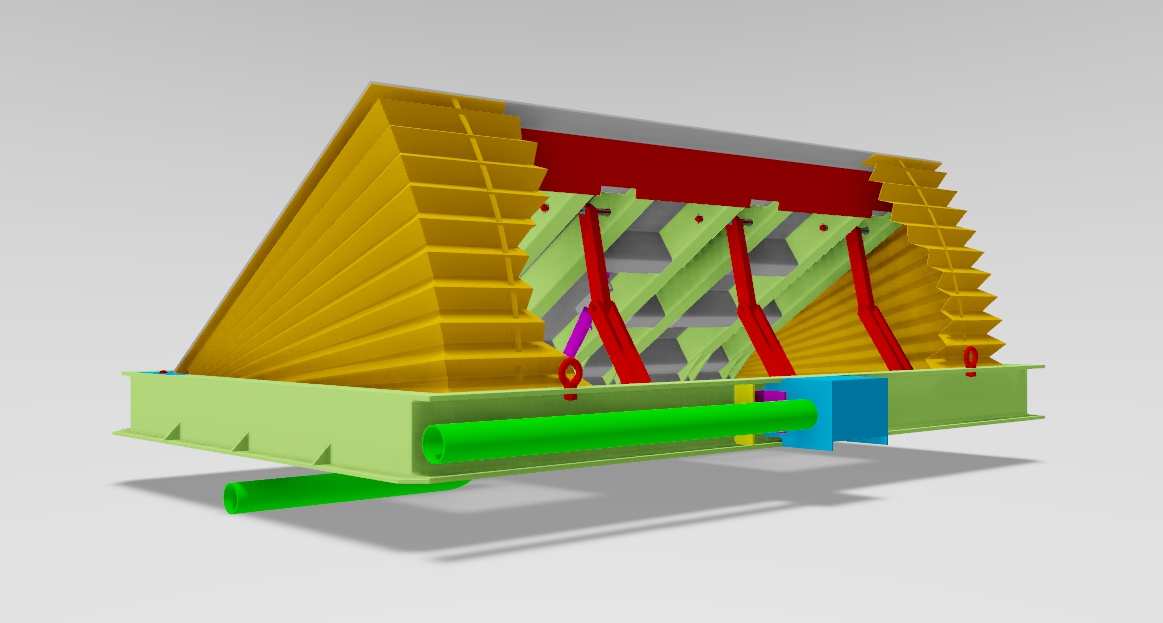

Awali designed of a series of hydraulically operated road blockers with raise height of up to 1000mm and a separate Hydraulic Power Pack. Our designs also included shallow mount systems and barriers. The road blocker was impact crash tested at Horiba Mira test facility to Standard IWA14-1:2013. In testing the Road Blocker was found to have zero penetration by a Class N2A truck with a gross weight of 7200kg traveling at 80kph at an impact angle of 90°. In addition to a series of new blockers Awali undertook design changes and improvements to our client’s portfolio.

Software

2D and 3D Autocad plus Navisworks

Category

Security

Location

United Kingdom

Client

Perimeter Security Protection Company

Delivered

Project deliverables including:-

  • Design Of road blockers.

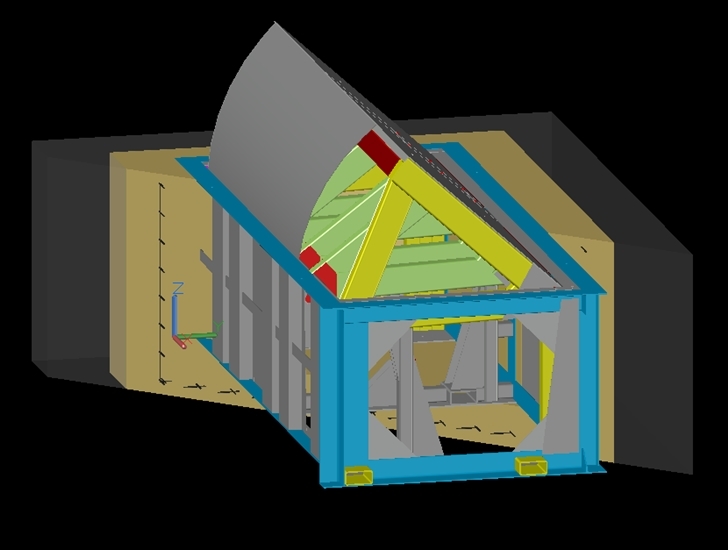

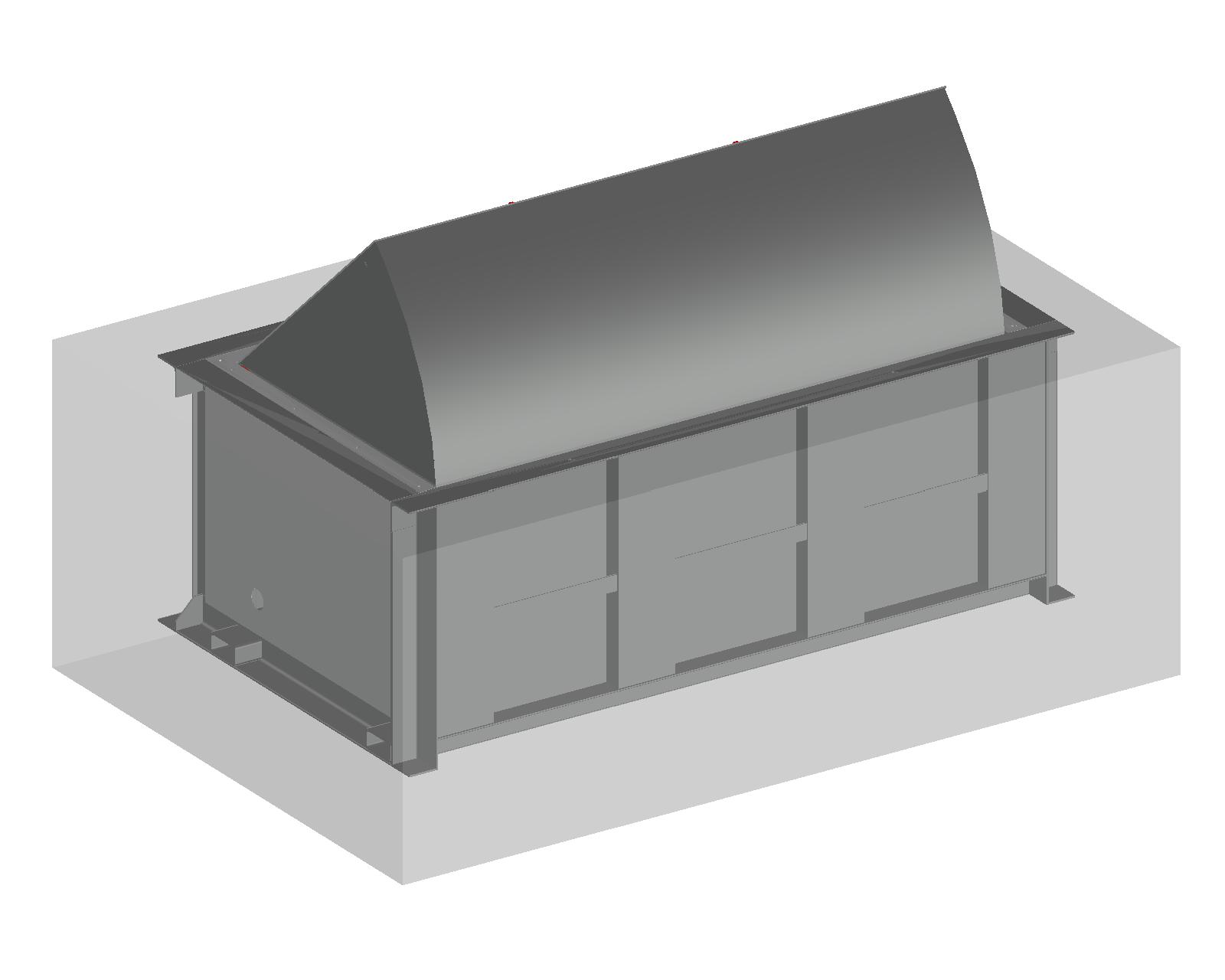

  • Autocad 3D model.
  • Complete set of 2D fabrication drawings.
  • General Arrangement drawings.
  • Material lists and other documentation.
  • Review meetings with fabricators.
  • Witness Mira Crash Test.
  • Review client’s portfolio.
