Project information

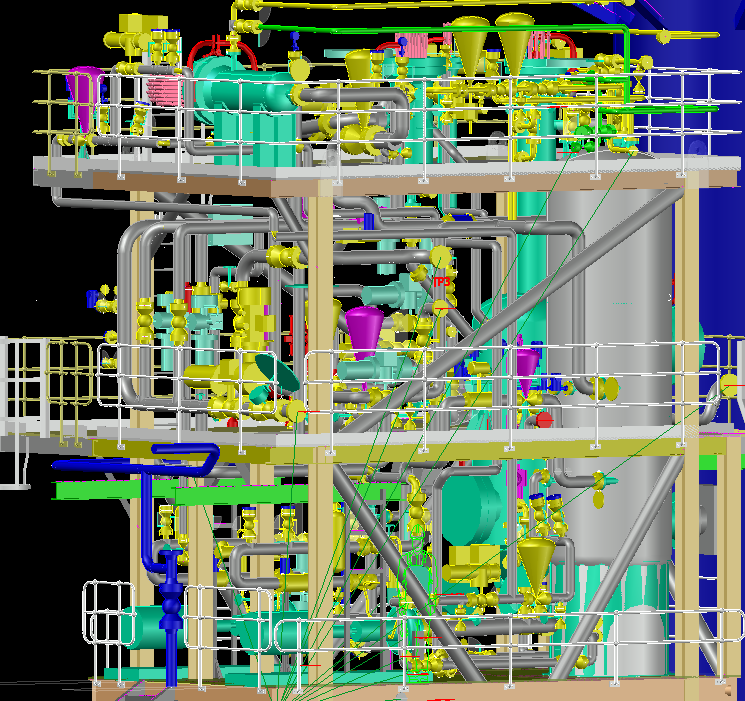

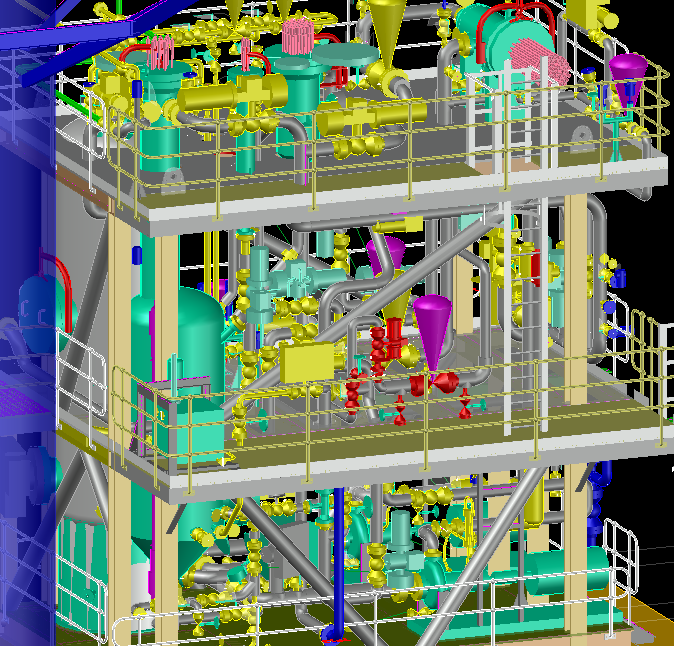

Design of desanding hydrocyclone package. Awali took over the design of package at 30% and redesigned the steelwork and piping to ensure design met with standards, specifications, design codes and latest design information. Model was then taken to 100% and handed back to the consultancy for final 2D drawings.
Software
Autocad, Cadworx, Navisworks, Caesar II and Staad Pro
Category
Oil and Gas
Location
Azerbaijan
Client
Design Consultancy
Delivered
Design deliverables include:-
- Complete redesigned Interactive 3D model.
- Piping design including analysis.
- Structural design including analysis.
- Client interaction and review meetings.
- Model released on time despite redesign.
