Project information

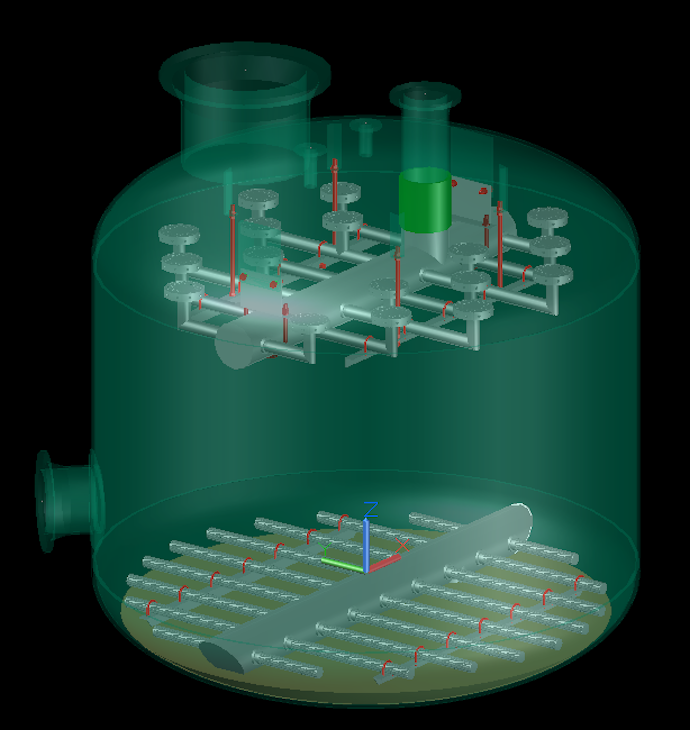

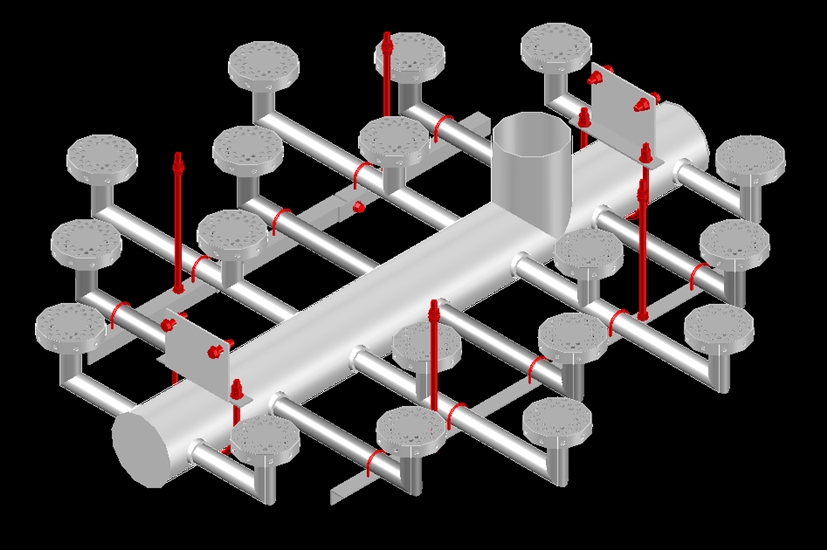

Using the original vessel drawings, Awali redesigned a set of top and bottom headers, laterals and distribution heads suitable for installation through the vessel manhole.
Software
Autocad and Navisworks
Category
Water Treatment
Location
United Kingdom
Client
Serck Separation
Delivered
Design deliverables including:
- 3D model of Vessel, Headers and Drive System
- Complete set of 2D fabrication drawings
- Assembly Drawings and Arrangement
- General Arrangement drawings
- Material lists and other documentation
